SanwaSKU: CD5001
Price:
$109.50

Customer Reviews

Description

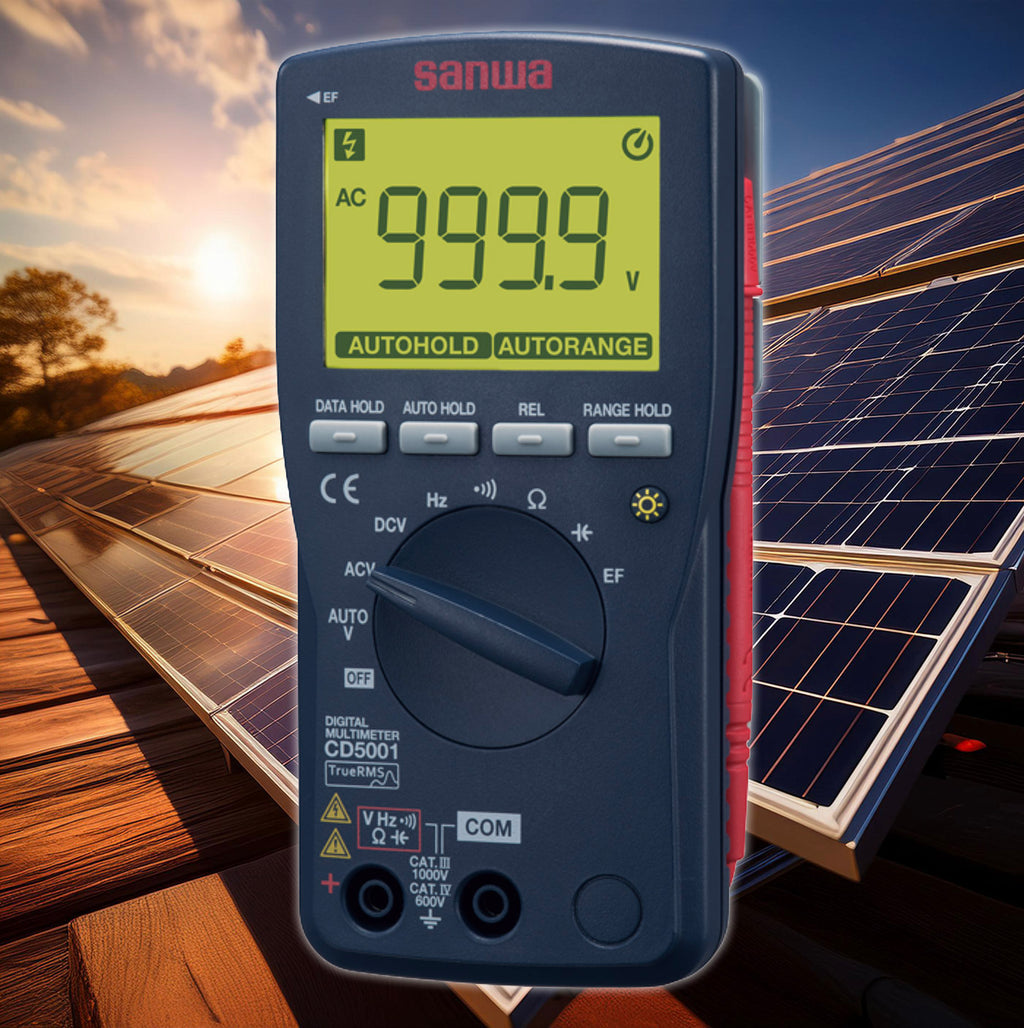

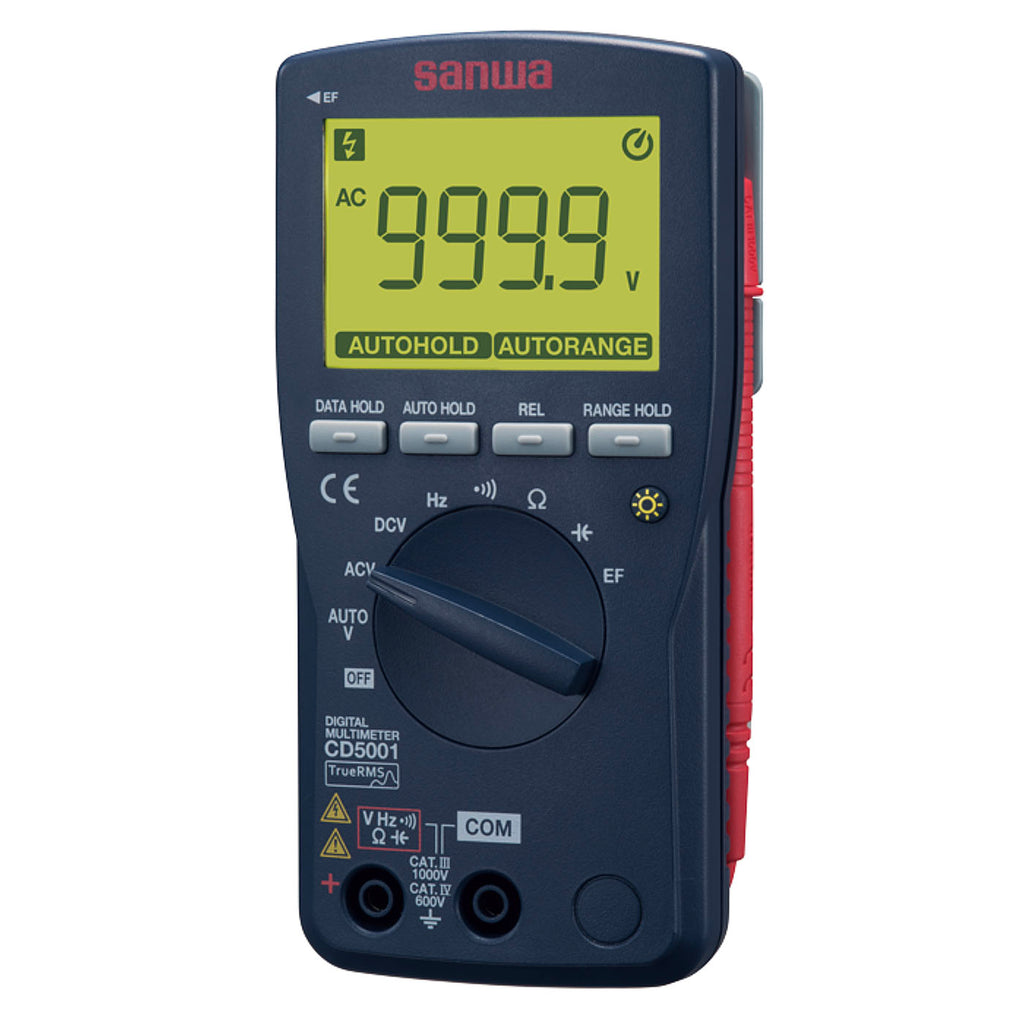

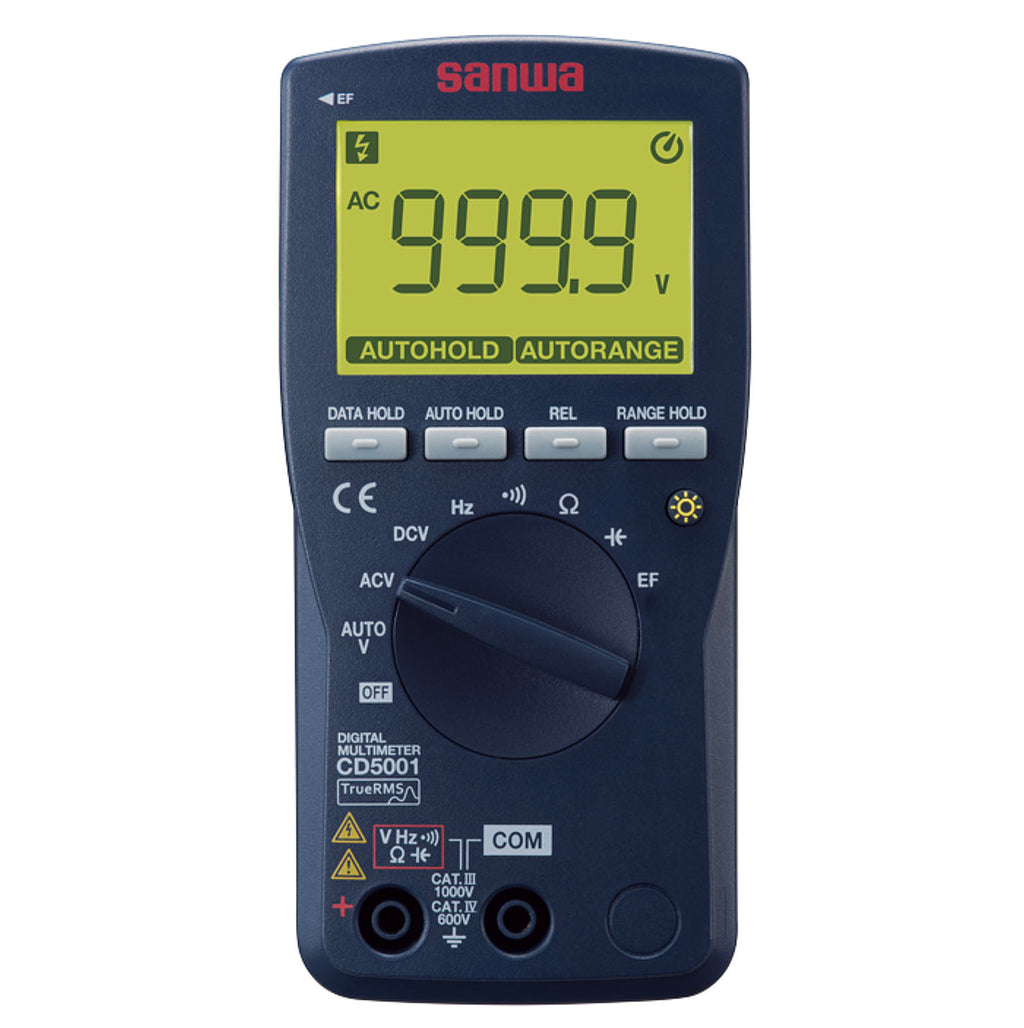

The all-new SANWA CD5001 is a professional grade, true RMS digital multimeter designed for precise and reliable measurements in low-voltage electrical work.

With a robust CAT. IV 600V and CAT. III 1000V rating, it ensures safety and accuracy in demanding environments. It features true RMS and EF (Electric Field) sensing for accurate readings, a full 4-digit 9999 count display, and an auto voltage function that distinguishes between DC and AC voltage. With its compact design, large display and advanced functionality, this multimeter is a solid and reliable tool for professionals and hobbyists alike.

  • True RMS Accuracy: Delivers precise readings for both sinusoidal and non-sinusoidal signals.
  • Full 4-Digit 9999 Count Display: Provides high-resolution measurements.
  • EF (Electric Field) Sensing: Detects electromagnetic fields for enhanced troubleshooting.
  • AUTO V Function: Automatically identifies AC or DC voltage for seamless operation.
  • Auto Hold Function: Stabilized measurements are held automatically for easy recording.
  • User-Friendly Design: Large, backlit display for readability and a lightweight, ergonomic build for comfort.
  • Auto Power Off: Conserves battery life by shutting down after 30 minutes of inactivity, with an option to disable.



Specifications

CD5001 Measuring Range Accuracy Resolution Input Impedance
DCV 999.9m/9.999/99.99/999.9V ±(0.5%+2) 0.1mV 10M～11MΩ
ACV 999.9m/9.999/99.99/999.9V ±(1.0%+5) 0.001V 10M～11MΩ
Resistance 999.9/9.999k/99.99k/999.9k/9.999M/99.99MΩ ±(0.5%+5) 0.1Ω
Capacitance 999.9n/9.999μ/99.99μ/999.9μ/9.999m/99.99mF ±(5%+5) 0.1nF
Frequency 9.999/99.99/999.9/9.999k/99.99kHz ±(0.1%+5) 0.001Hz
Continuity Buzzer sounds at 30 to 70Ω or less. Open voltage: approx.0.6V
EF Detection Detects ACV and EF of approx. 80V or more



Display Numeral display 9999
Sampling rate 5 times/sec.
Bandwidth 40～400Hz（Sine wave)
Battery LR03x2
Battery life Approx. 550h at DCV range
Size/Mass H149×W72×D37mm/Approx. 232g
Safety standards IEC61010 CAT.IV600V/CT.III1000V
