LCR700 | Handheld Digital LCR Meter

Save $59.20
SanwaSKU: LCR700

Price:
Sale price$236.80 Regular price$296.00
Optional Accessories:
CL-700SMD | Clip Lead Adapter - Tweezers Type
LCR-USB | Optical Link: LCR-USB Connector


Data Hold

A value indicated on the display is fixed for reference even after the test lead is removed.

Auto Power Off

Power is automatically turned off when a certain time has elapsed after power-up. Some models have a function to cancel this function.

Data Hold

A value indicated on the display is fixed even after the test lead is removed, and can be used as a record for reference purposes.

Backlight

Backlit display allows indicator reading in a dark place.

USB Connection

Data can be exported to a PC via USB port and optional cable.

Relative Value

A certain measured value is assumed as 0 and measured values after that are expressed by positive or negative values relative the value fixed as 0.

Customer Reviews

New content loaded

Description

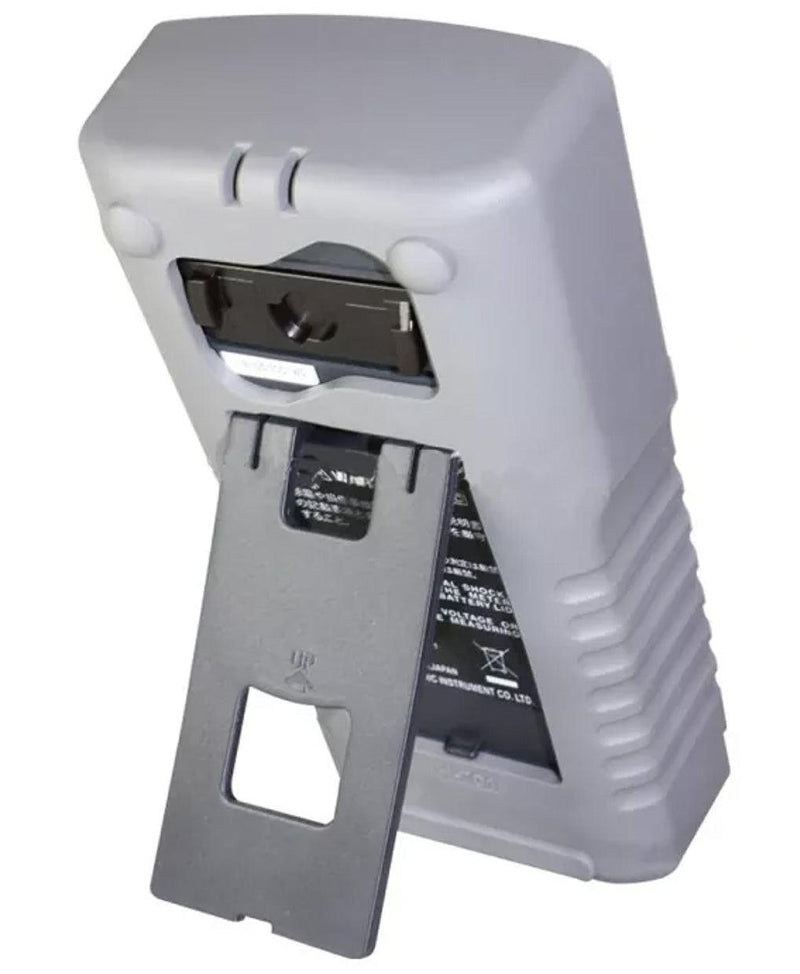

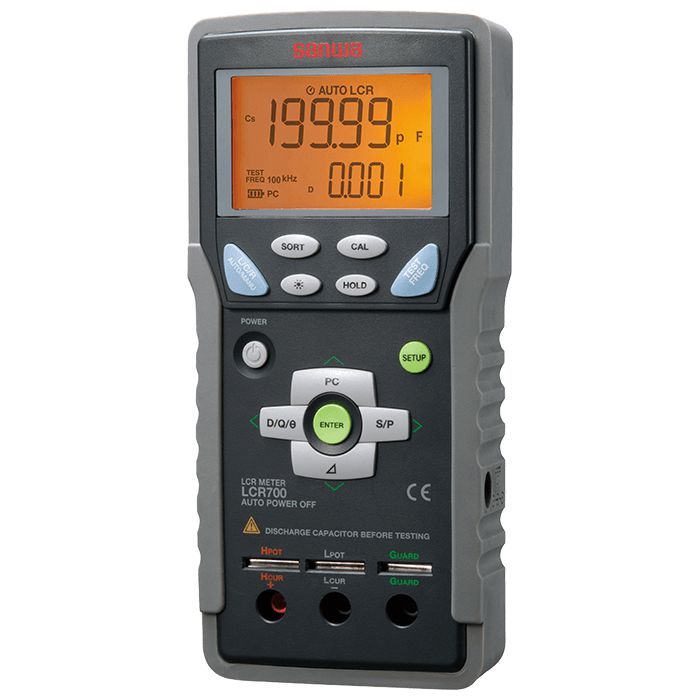

LCR700 is a full-featured, high-performance LCR meter that rivals the capabilities and options of many of its benchtop counterparts.

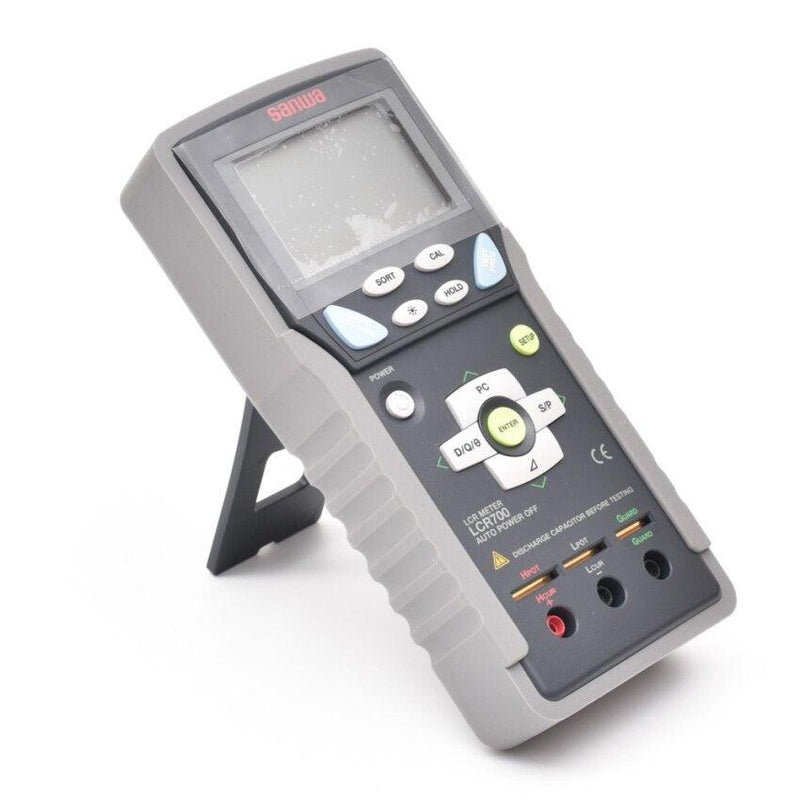

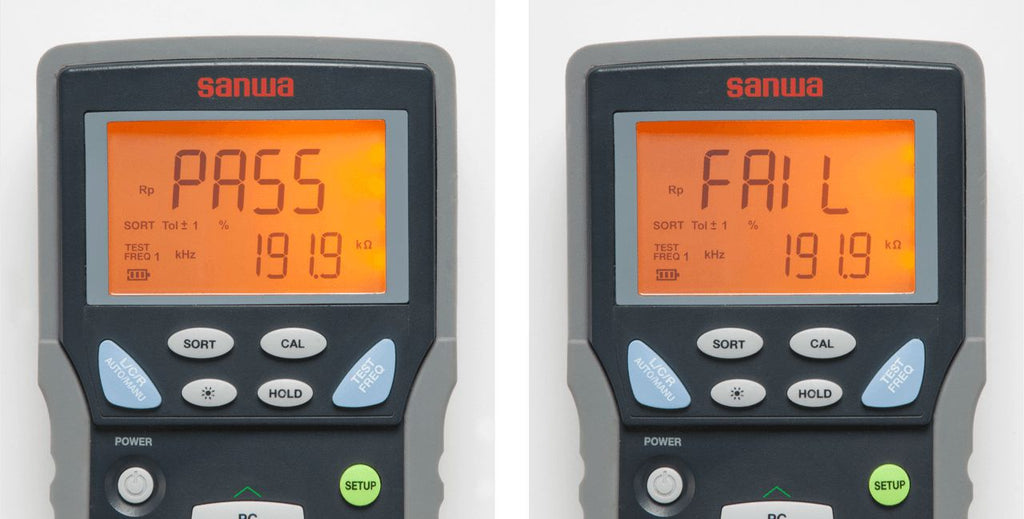

This instrument features a device value sorting function, allowing users to quickly sort passive devices in situations such as incoming inspections.

  • Automatically selectable L/C/R measurement and Selectable Series/Parallel mode
  • Ls/Lp/Cs/Cp measurement with sub parameters (D/Q/ Ω¸/ESR)
  • 5 different measuring frequencies (100/120/1k/10k/100kHz)
  • DC resistance function (7 ranges: 200.00 Ω to 200.0M Ω)
  • 5-terminal measurement (4 terminals plus guard shielding)
  • Device Sorting mode to allow users to quickly sort passive devices such as L, C, and R

Separately available companion software and "LCR-USB" communication unit will allow you to transfer the measured data to your PC with ease.

Specifications

Functions Ranges Accuracy
Ls/Lp 20.000u/200.00u/2000.0u/20.000m/200.00m/2000.0m
20.000/200.00/2000.0/20.000kH
±(0.3%+3)
Cs/Cp 200.00p/2000.0p/20.00n/200.00n/2000.0n/
20.000u/200.00u/2000.0u/20.00mF(50pF or less: out of accuracy)
±(0.3%+3)
Rs/Rp 20.000/200.00/2.0000k/20.000k/
200.00k/2.0000M/20.000M/200.0MΩ
±(0.3%+3)
Ω 200.00/2.0000k/20.000k/200.00k/
2.0000M/20.000M/200.0MΩ
±(0.3%+3)
Sampling rate 1.2 times / second (LCR mode)
0.5 times /second (DCR mode)
Measurement frequencies 100/120/1k/10k/100kHz
Power supply 6LF22/6LR61 alkaline 9V
Battery life Approx. 35 hours (auto LCR mode, 1 kHz)
Size / Mass H184 x W87 x D45 mm / Approx. 400g
