Description
The Sanwa PM3 is a pocket-size digital multimeter that offers many of the features of a standard-size multimeter.
The PM3 is designed for measuring low voltage circuits, measures a mere 4.25" x 2.2" x 0.45" (H x W x D), and weighs approximately 3 ounces.
The PM3 digital multimeter can perform all basic measurements such as voltage, resistance, capacitance, frequency, and duty cycle as well as continuity test. The probes in the Sanwa PM3 are internally connected with the circuit and are not removable
The device is EN61010-1 CAT.II 500V compliant, meaning it can be used to measure the main socket and plug-in loads such as home electrical appliances. For keeping the device protected against moisture and dust, the PM3 comes with a leather case that can hold both the multimeter as well as the test leads in place.

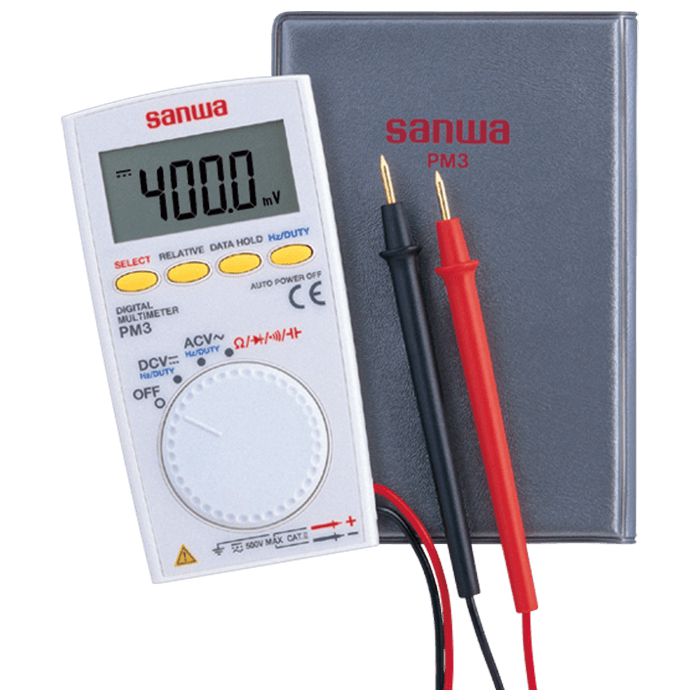

Includes meter, folding case, instruction manual and test leads (attached).
- 4000 Count Display
- 0.7% Accuracy
- Resistance measurement
- Capacitance measurement
(Not suitable for measurement of condensers with large leak current). - Frequency measurement (AC sine wave only)
- Duty cycle measurement
- Continuity test with buzzer
- Data hold
- Relative value
- Auto power save (15min after the last operation) (cancelable)
- EN61010-1 CAT.II 500V compliant
- Size/Mass: 108 x 56 x 11.5mm (H x W x D)/ 85g
Specifications
| PM3 | Range | Accuracy | Resolution | Input impedance |
|---|---|---|---|---|
| DCV | 400m/4/40/400/500V | ±(0.7%+3) | 0.1mV | 10M～100MΩ |
| ACV | 4/40/400/500V | ±(2.3%+5) | 0.001V | 10M～11MΩ |
| Resistance | 400/4k/40k/400k/4M/40MΩ | ±(2.0%+5) | 0.1Ω | |
| Capacitance | 5n/50n/500n/5μ/50μ/200μF | ±(5.0%+10) | 0.001nF | |
| Frequency | 9.999/99.99/999.9/9.999k/60.00kHz | ±(0.7%+5) | 0.001Hz | |
| Duty cycle | 0.1～99% | |||
| Continuity | Buzzer sounds at less than 10Ω～120Ω Open voltage: Approx. 0.4V |
|||
| Diode test | Open voltage: Approx. 1.5V | |||
| Display | Numeral display 4000 |
| Sampling rate | 3 times/sec. |
| Bandwidth | 40～400Hz |
| Battery | Coin type lithium battery CR2032(3V)x1 |
| Battery life | Approx.150h at DCV |
| Size/Mass | H108×W56×D11.5mm/Approx.50g |
| Test lead length/Pin tip | Length: approx.0.5m/18mm |
| Safety | IEC61010 CAT.ⅡDC / AC500V |
