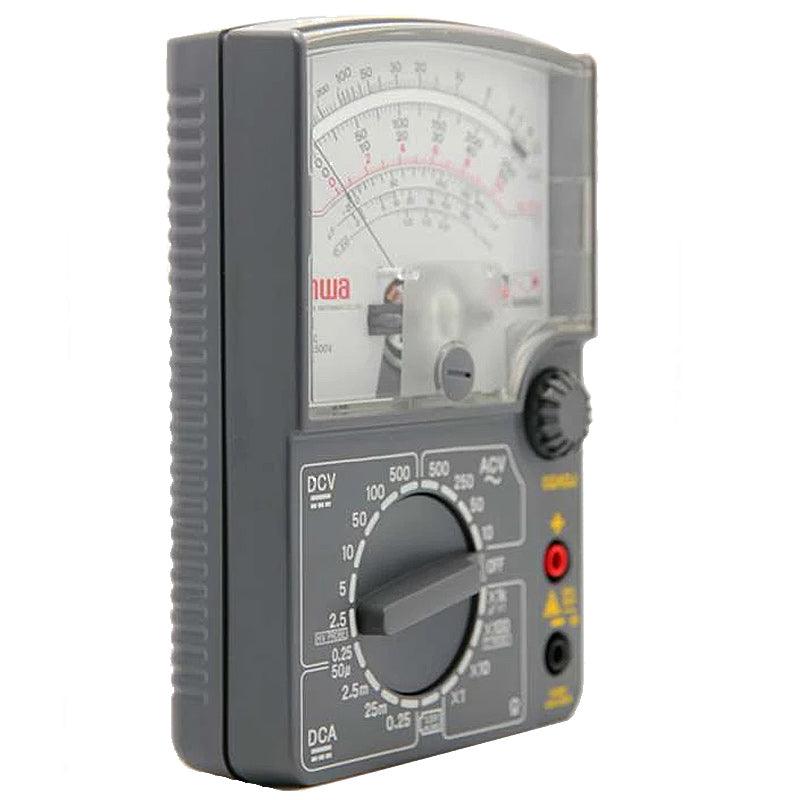

SP20 | Analog Multimeter with High Voltage DC and Battery Check

SanwaSKU: SP20

Price:
Sale price$72.88
Optional Accessories:
C-SPH | Carrying Case
CL-15a | Alligator Clip Adapter
TLF-120 | Replacement Test Leads with Built-in Fuse
TL-61 | Test Leads for YX-361TR + SP20
TL-9IC | Adapter: IC Clip
TL-91 | Test Leads
TL-91 | Test Leads
$15.95 USD
T-THP | Temperature Sensor


Capacitor

Capacitor capacity (electrostatic capacity) is measured in F (farad), μF, etc.

Battery Check

Battery voltage is measured and assessed by running a given current.

Drop Shock Proof

The meter element is constructed with a taut band and impact-resistant design.

Customer Reviews

New content loaded

Description

This shock resistant analog multimeter provides 20 measurement functions including high voltage DC, battery check and (optional) temperature measurement.

The Sanwa SP20 is a portable analog multi-tester with 20 measurement functions.

This meter is specially designed for low power circuits and home electric appliance testing. This meter is an Internal magnet type, taut band meter with a full-scale accuracy of 3%. The device is capable of measuring ACV and DCV along with high voltage DC of up to 25kV (using optional HV-10 probe). The device is also capable of measuring resistances of up to 2MΩ and capacitance with a full-scale value of 500uF.

The SP20 has protective covering which provides protection against drop shocks. The circuit is protected by a fuse rated at (250V/0.5A) with a blowout capacity of 500 Amperes.

Includes meter, one set of test leads and instruction manual.

  • Drop shock proof taut-band meter
  • 20ch measurement ranges
  • Capacitance measurement 500μF
  • Tilt stand
  • DC high voltage and temperature measurement (with optional accessories)

Specifications

Function Measuring Range Tolerance
DCV 0.25/2.5/5/10/50/100(20kΩ/V)/500V(9kΩ/V) ±3% of full scale
ACV 10/50/250/500V(9kΩ/V) ±3% of full scale
DCA 50μ/2.5m/25m/0.25A ±3% of full scale
Resistance 2k/20k/200k/2MΩ ±3% of arc
Capacitance 500μF Approximate value
DC high voltage DC25kV (Using separately available probe HV-10) ±20% with probe
Temperature -20 to + 200℃ (Using separately available probe T-THP) ±3% (Using T-THP)
Battery check 1.5V (1.0~2.0V) Approximate value
Frequency characteristic AC10V range 40Hz to 100kHz: frequency response within ±3%
Battery R6P(AA battery)1.5Vx2
Built-in fuse F0305 Φ6.3x30mm 0.5A/250V 300A Glass fuse
Size/Mass H144×W99×D41mm/Approx. 270g
